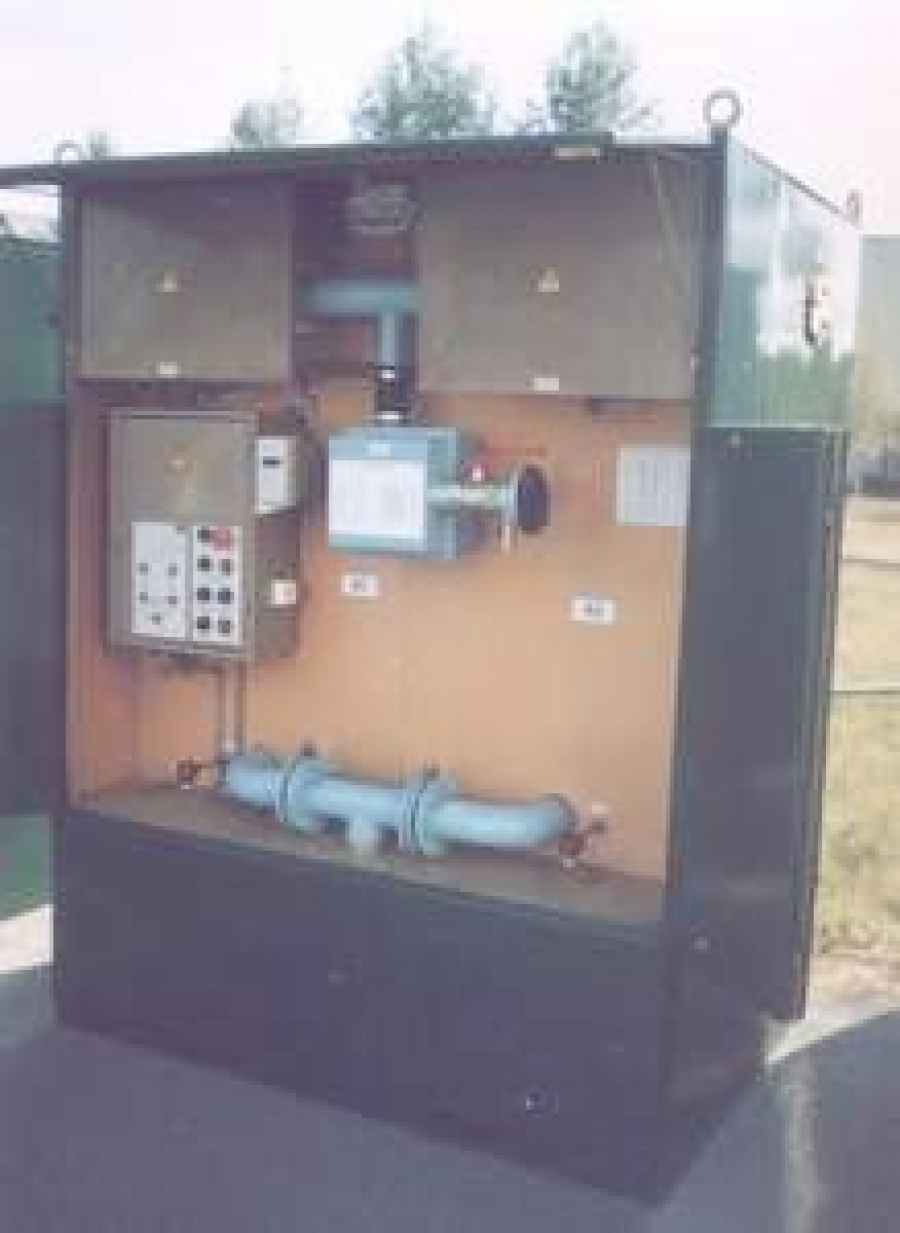

The Plants are designed for deep drying and purifying from mechanical impurities of the atmosphere air, which are used for purging the power transformers tanks during installation, service and repair of them.
The Plants are also used for regeneration the silica gel in thermosiphon filters, zeolite in chucks in the mounting pad condition for drying:
- the tanks for transformers oil;
- the transformers oil;
- solid insulation of power transformers tanks of which are not withstand vacuum;
- the electrical machinery stators.
|
Parameter |
OV-50 |
OV-100 |
OV-200 |
|
Dry air capacity, m3/h, not less than |
50 |
100 |
200 |
|
Dried air dew point, oС, not more than |
- 50 |
||
|
Filtration rating of dryed air, micron , not more than |
5 |
||
|
Maximum pressure of dryed air at the Plant outlet, kPa, not more than |
50 |
50 |
80 |
|
Installed power, kW, not more than |
20 |
30 |
43.5 |
|
Supply voltage |
3 х 380 V, 50 Hz |
||
|
Overall dimensions, mm: length – width – height |
1200х1000х2000 |
1500х1000х2000 |
1600х1100х2075 |
|
Weight, kg, not more than |
880 |
1400 |
1850 |
